Micro Speaker Unit
마이크로 스피커는 음성 출력 신호가 강하고 음악 기능이 강화된 전자 부품으로, 모양은 사각 및 직사각형, 원형, 타원형 등이 있으며
크키는 보통 Ø10에서 Ø150 외 다양하게 있습니다. 대표적으로 모바일폰, 카메라, 블랙박스에 적용됩니다.

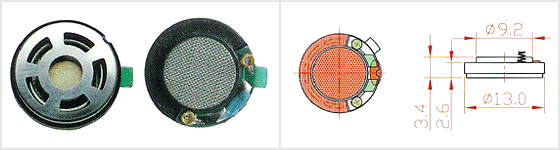

SG-1308M9
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.45W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 88dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_ba139ecb310e4ace9e1567020ede12fd~mv2.gif)

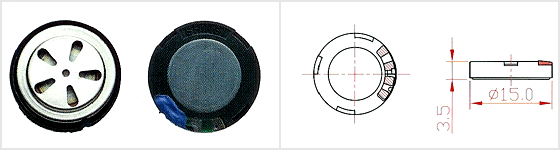

SG-1508M
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 89dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 850Hz
![](https://static.wixstatic.com/media/de5d38_c39950d35c914bad84ddf757290f5b33~mv2.gif)
SG-1608M6
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 84dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_7884de4e58954298ad4c558cc5d35235~mv2.gif)
SG-1708MS2
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 89dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_171c894be8574fff811cf27e939d42d1~mv2.gif)

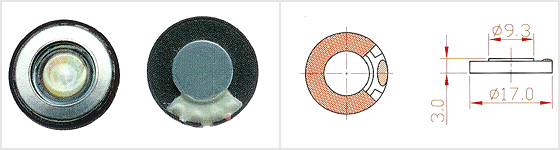

SG-1708M17
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 88dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 800Hz
![](https://static.wixstatic.com/media/de5d38_a6d97a05b2c0434a98c294eb04bef9c9~mv2.gif)
SG-2013M
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 88dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_f0ddf661a91b4229b0070fcfdada9519~mv2.gif)
SG-2413M
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 88dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 850Hz
![](https://static.wixstatic.com/media/de5d38_11be79836d3c4d27a5d46df6ca9e80ef~mv2.gif)

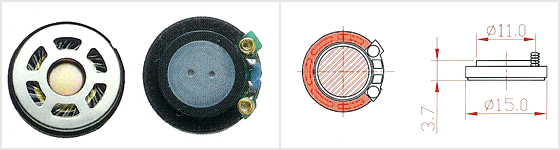

SG-1508M11
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 89dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_65a3d43df272417bb0b144139ed8e457~mv2.gif)
SG-1510M
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 86dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 950Hz
![](https://static.wixstatic.com/media/de5d38_10ef66138d6644bc8ae3ff455a557c3c~mv2.gif)

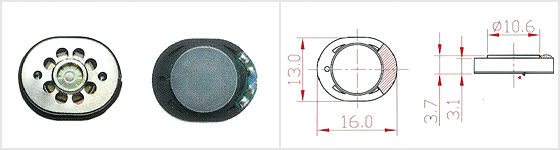

SG-1613M1
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 86dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 800Hz
![](https://static.wixstatic.com/media/de5d38_35f52cb516c541108f15f3664b1331c1~mv2.gif)

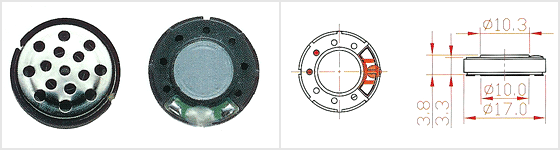

SG-1708M06
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.4W
Max Power(W) : 0.5W
Sound Pressure Level(dB) : 87dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 700Hz
![](https://static.wixstatic.com/media/de5d38_79e7dcecc7564d9e9503078a657ffdd1~mv2.gif)
SG-1813M6
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 89dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 800Hz
![](https://static.wixstatic.com/media/de5d38_c1b83966b3284c2f9becdb6a99db7dcd~mv2.gif)
SG-2015M
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.5W
Max Power(W) : 0.7W
Sound Pressure Level(dB) : 87dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 750Hz
![](https://static.wixstatic.com/media/de5d38_54609a9de50c473db1134a82dbaa9002~mv2.gif)
SG-1710S
SPECIFICATION
Impedance(Ohm) : 8 Ohm ± 15%
Rated Power(W) : 0.45W
Max Power(W) : 0.6W
Sound Pressure Level(dB) : 89dB
Frequency Range(Hz) : Fo ~ 20kHz
Fo(Hz) : 800Hz
![](https://static.wixstatic.com/media/de5d38_71d582da02dd4a859ede2009546446bc~mv2.gif)
